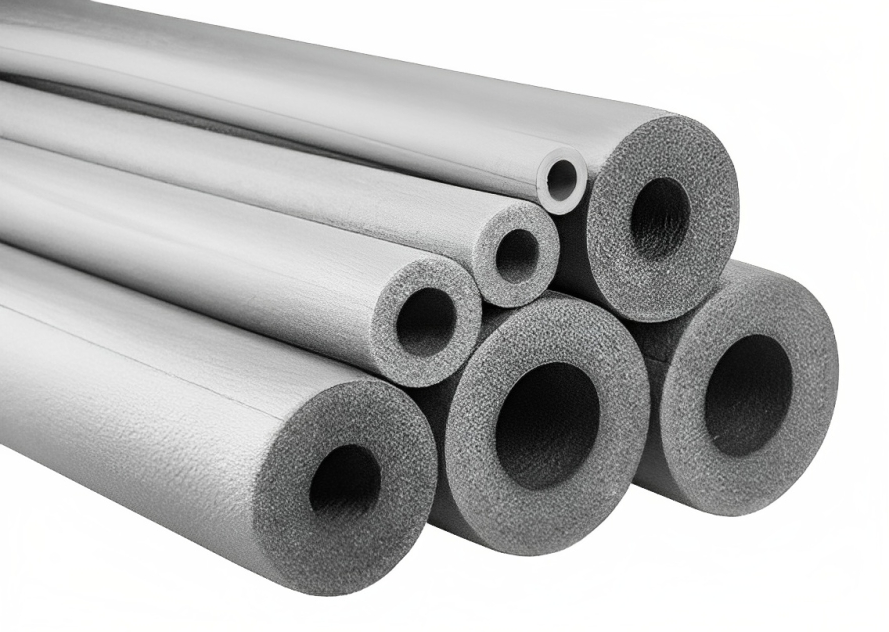

XLPE Pipe Tubing (Plain)
Cross-Linked Polyethylene (XLPE) Pipe Tubing in its plain form is a cutting-edge solution designed to address the diverse insulation needs of various industries. XLPE, a type of polyethylene with enhanced properties due to cross-linking, offers exceptional insulation performance, making it an ideal choice for a range of applications.
| Parameter | Value |
| Material (ASTM C 1427) | Chemically Cross Linked Closed Cell Polyethylene Foam Insulation |
| Thickness | 3mm, 6mm, 9mm, 13mm, 15mm, 19mm, 25mm, 30mm, 35mm, 40mm, 50mm |
| Color | Grey |
| Pipe Diameters (MS PIPE) | 1/2ʺ, 3/4ʺ, 11/4ʺ, 11/2ʺ, 2ʺ21/2ʺ3ʺ, 4ʺ, 5ʺ, 6ʺ, 8ʺ, 10ʺ |
| Pipe Diameters (Copper PIPE) | 1/4ʺ, 3/8ʺ, 1/2ʺ, 5/8ʺ, 3/4ʺ, 7/8ʺ, 1ʺ, 1-1/8ʺ, 1-1/4ʺ, 1-3/8ʺ, 1-1/2ʺ, 1-5/8ʺ, 1-3/4ʺ, 1-7/8ʺ, 2ʺ, 2-1/8ʺ, 2-1/4ʺ, 2-3/8ʺ, 2-1/2ʺ, 2-5/8ʺ, 27/8ʺ, 3ʺ, 31/8, 3.1/8, 3.1/4, 3.1/2, 3.5/8, 3.7/8, 4ʺ, 4-1/8ʺ, 4-1/2ʺ, 5-1/8”, 5-1/2ʺ |
| Temperature Range | – 40° C to +115° C |
| Nominal Density | 30 + 3 Kg/m3 |
| Parameter | Value |
| Thermal Conductivity | Mean Temperature (C) W/m °K Kcal/hr m (C) 0 0.0318 0.0273 23 0.0329 0.0283 46 0.0382 0.0328 |
| Water Vapour Resistance Factor (u) (MEW) – (DIN 52615) | Moisture Resistance Factor (u) > 9000 (for plain foam) > 14000 (for Al foil faced foam) |
| Reaction to Fire | Self Extinguishing, Non-toxic Ozone: Very Good |
| Limiting Oxygen Index: ASTM D 2863 | 24% |
| Compression Strength @ 25%: ASTM D 3575 | 0.44 Kgf/cm2 |
| Resistance to Chemical: ASTM C 543 | No characteristic change observed |
| Parameter | Value |
| Tensile Strength @ 50 mm / min: ASTM D 3575 | 2,51 Kgf/cm2 |
| Elongation at Break: ASTM D 3575 | 133.20% |
| Fungal Resistance: ASTM G21 | No growth observed |
| Sound Transmission Class for 9 mm foam with 12 mm Gypsum board: ASTM E 413 / ISO 140 | 40 dB |
| Water Absorption: ASTM C 209 / ASTM 1763 | <0.2% |
| Water Vapour Permeance: ASTM E96 | 0.15 ng/pas.m |
| Health & Safety Aspects | CFC / HCFC Free; Dust and Fibre free, VOC / SVOC Free |
Applications
- Power Distribution: XLPE Pipe Tubing is commonly used to insulate power cables, ensuring efficient and safe transmission of electricity while minimizing energy loss.
- Plumbing and Piping: The tubing finds application in plumbing systems for transporting fluids and gases. Its resistance to chemicals and durability make it suitable for a variety of piping needs.
- Industrial Processes: In chemical processing plants, XLPE Pipe Tubing is used for transporting corrosive substances, providing both chemical resistance and insulation.
- Underground Utilities: The tubing's resistance to moisture and environmental factors makes it a reliable choice for underground utility installations, protecting cables and pipes.
- Automotive and Aerospace: XLPE Pipe Tubing is used in the automotive and aerospace industries for wire harnesses and fluid transport, thanks to its insulation properties and resistance to temperature fluctuations.
- Construction and HVAC: In construction, the tubing is employed for insulating pipes, contributing to energy efficiency in heating, ventilation, and air conditioning systems.
- Electrical Enclosures: The tubing provides electrical insulation for wiring and components in electrical enclosures, safeguarding against electrical hazards.
Advantages
- High Insulation Efficiency: XLPE Pipe Tubing is renowned for its exceptional electrical insulation capabilities. It prevents electrical leakage and minimizes the risk of short circuits, ensuring safety in various electrical systems.
- Thermal Stability: The cross-linking process imparts excellent thermal stability to XLPE Pipe Tubing. It can withstand a wide range of temperatures without compromising its insulation performance.
- Resistance to Chemicals: XLPE is known for its resistance to various chemicals, including acids, alkalis, and solvents. This property makes the tubing suitable for applications in chemically aggressive environments.
- Mechanical Strength: XLPE Pipe Tubing boasts enhanced mechanical strength compared to traditional polyethylene. It can withstand physical stresses, impacts, and pressures, maintaining its structural integrity.
- Durability and Longevity: With resistance to environmental factors such as moisture, UV radiation, and aging, XLPE Pipe Tubing is designed to be durable and long-lasting, reducing maintenance and replacement needs.
- Flexibility and Ease of Installation: Despite its robustness, XLPE Pipe Tubing retains flexibility, making it easy to install in various configurations, including complex or curved systems.
- Dielectric Properties: The tubing exhibits excellent dielectric properties, making it a suitable choice for applications where electrical insulation is critical, such as in cable insulation for power transmission.
